Automatic two head weighmetric granules filling line used for pouches packing and bottles filling. this machine comes in semi-automatic, single head automatic two head automatic and four head automatic varients. Standard model and GMP model available.speed depends on customers requirement.

update image not found
Automatic Eight Head Mango Pulp filling line. Capable of hot filling upto 100 degree centigrade. facility to run two different fill volumes independently. fill volume 100 Gms. to 3.1 Kg. speed 80 tins per minute of 850 Gms. Tins. 500 Ltrs. common storage hopper with level sensor for automatic level maintain. Volumetric piston filling technology. Pneumatic operated. PLC controlled system. Accuracy 0.5 to 1.0%.

update image not found

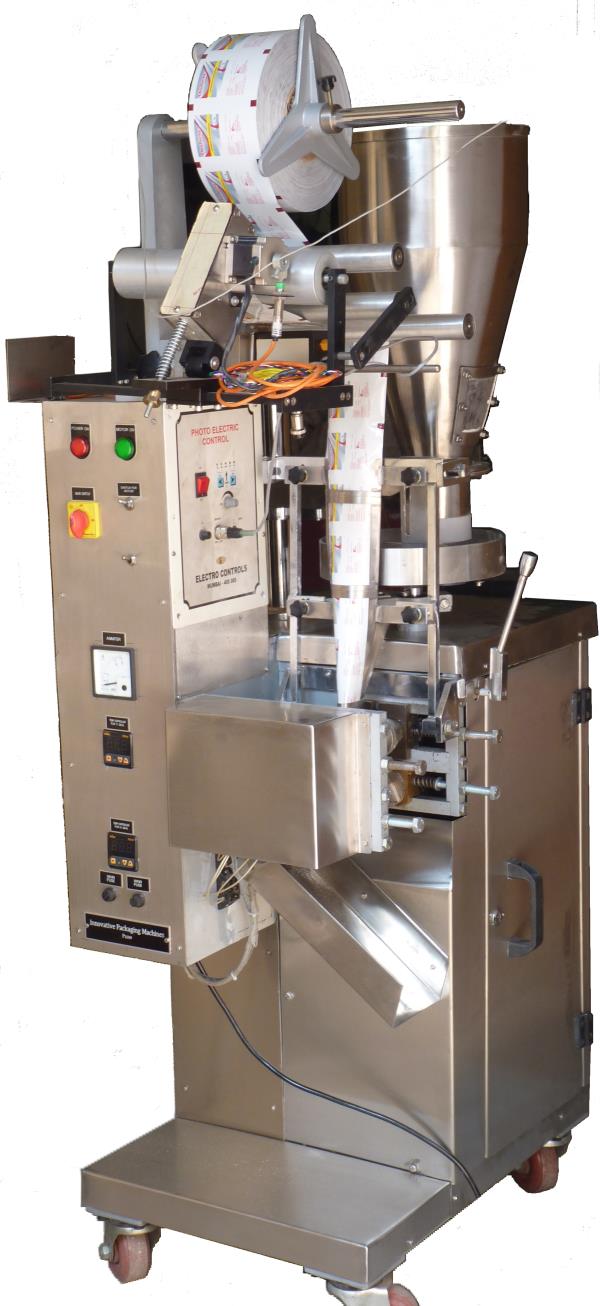

General Information A vertical form, fill and seal machine for producing 3/4 side sealed sachets handling all types of free flowing powders / granules. The machine speed is infinitely controlled from 0-95 cycles/ minute. Single reel film laminate stock reel feed. Max reel dia. 400 mm on 76 mm core. Product dosing by cup filler. All parts in contact with product are made of high quality stainless steel. Sealing dies gear operated. With complete pressure and temperature control on sachet seal area. Specifications A robust machine with particular consideration for minimum maintenance and ease of adjusting and giving high reliable output. All parts in contact with product, manufactured in stainless steel. Accurate sealing die temperature control and fully controllable die pressure. Cut off blades for separating sachet from film web housed in horizontal die for maximum efficiency. Photo cell print registration. Comprehensive push button control panel with cycle counter.). Tool kit and Operator Manual supplied with the machine . Applications: Powders, Granules, Spices, Soup Mixes, Detergents, Pharmaceutical and Agricultural Powders/Granules, Tea, Tobacco, Pan Masala, Coffee. Filling Range : From 0.5 gm up to 50 gms depending upon bulk density of the product

update image not found
Automatic And semi-automatic Powder filling machine. GMP Model , Machined screw achives maximum accuracy. Auger filler comes in both Clutch brake model and Servo driven model. filling range from 10.0 Gms. to 1.0 Kg. upto 5.0 Kg. on request in semi-automatic model. we provide both FFS Machine with auger filler and seperate auger filler for bottles filling machine. speed 15 PPM to 50 PPM.

update image not found
Automatic Granules filling machine Fills all types of free flowing granules. filling range 10 Gms. to 1.0 Kg. Semi-Automatic And Automatic models available. speed depends on customers requirements. this machine is useful for filling all types of groceries line, rice pulses, sugar, beans etc, . this machine can be attached with bucket elevator, screw capping machine and induction sealing machine etc.

update image not found
Automatic Pickle filling line Volumetric piston filling pneumatic operated machine Capable of cutting any hard shell during filling PLC controlled system semi-Automatic, Single head automatic, two head automatic and four head automatic depends upon speed requirement Filling Range 100 Gms to 1.0 Kg. Facility of production count GMP Model Slecially designed valve to handle the pickle pieces gently

update image not found
Automatic Four Head oil filling line with four head screw capping machine (Pneumatic). speed 40 to 50 BPM

Filling & packaging machines for Powders, Granules, Liquids, Viscous liquids and high viscous liquids

Innovative packaging machines manufacturers of good quality packaging machines

All our machines are GMP model.
